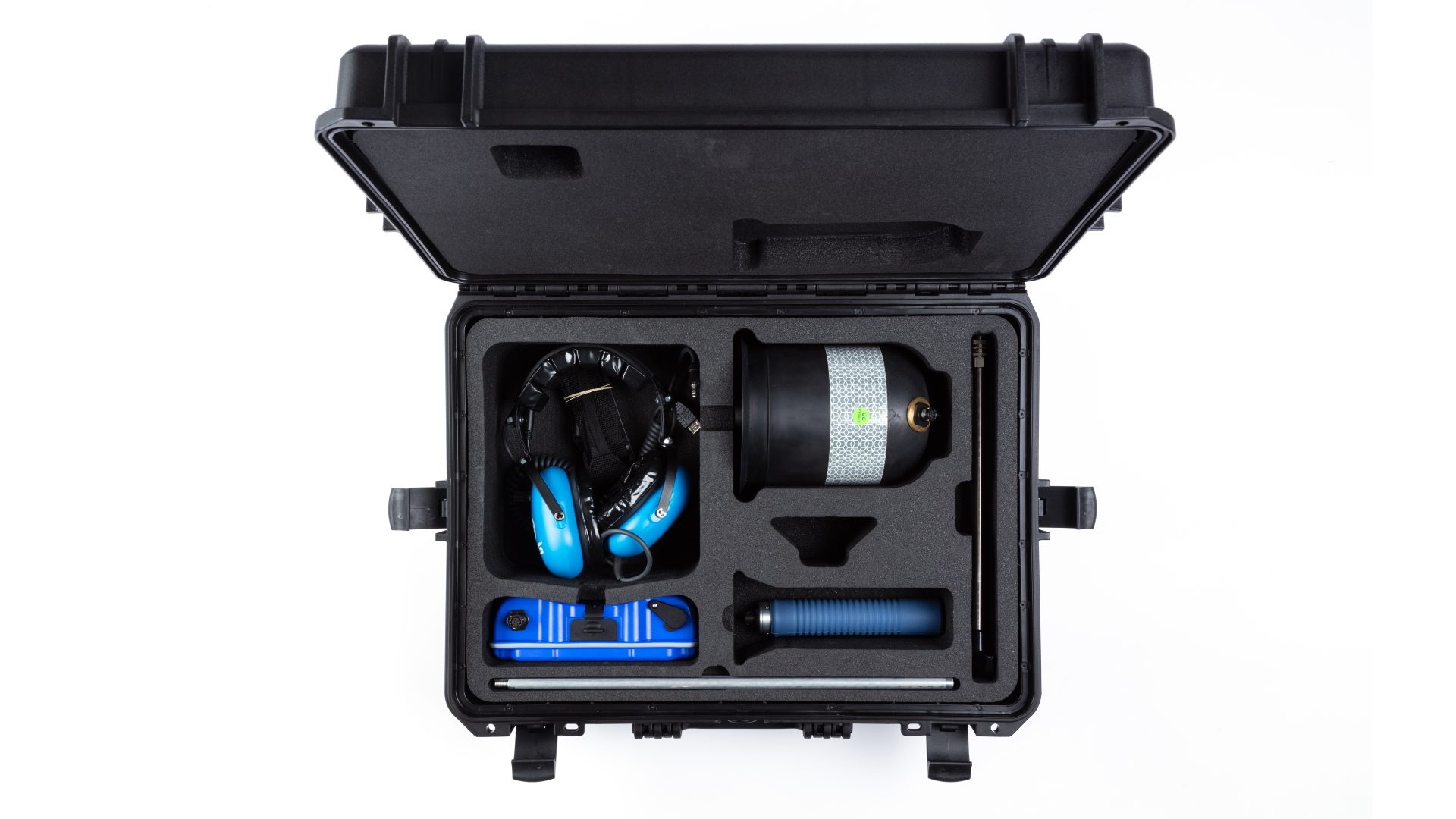

DXmic Pro is the latest generation ground microphone from FCS. Building on the excellent reputation of the Xmic, the DXmic features touchscreen operation and a wealth of new innovative features. The DXmic has the highest sound quality and supports audio recordings, so playback of any leak noise can easily be accessed via USB. The device comes with a robust carry case that can also be used as a charging station.

DXmic Pro
DXmic
DXmic Pro
DXmic

Key Features and Benefits

  • Excellent audio: Best-in-class sound quality.
  • Durable: Robust housing with carry handle fixings.

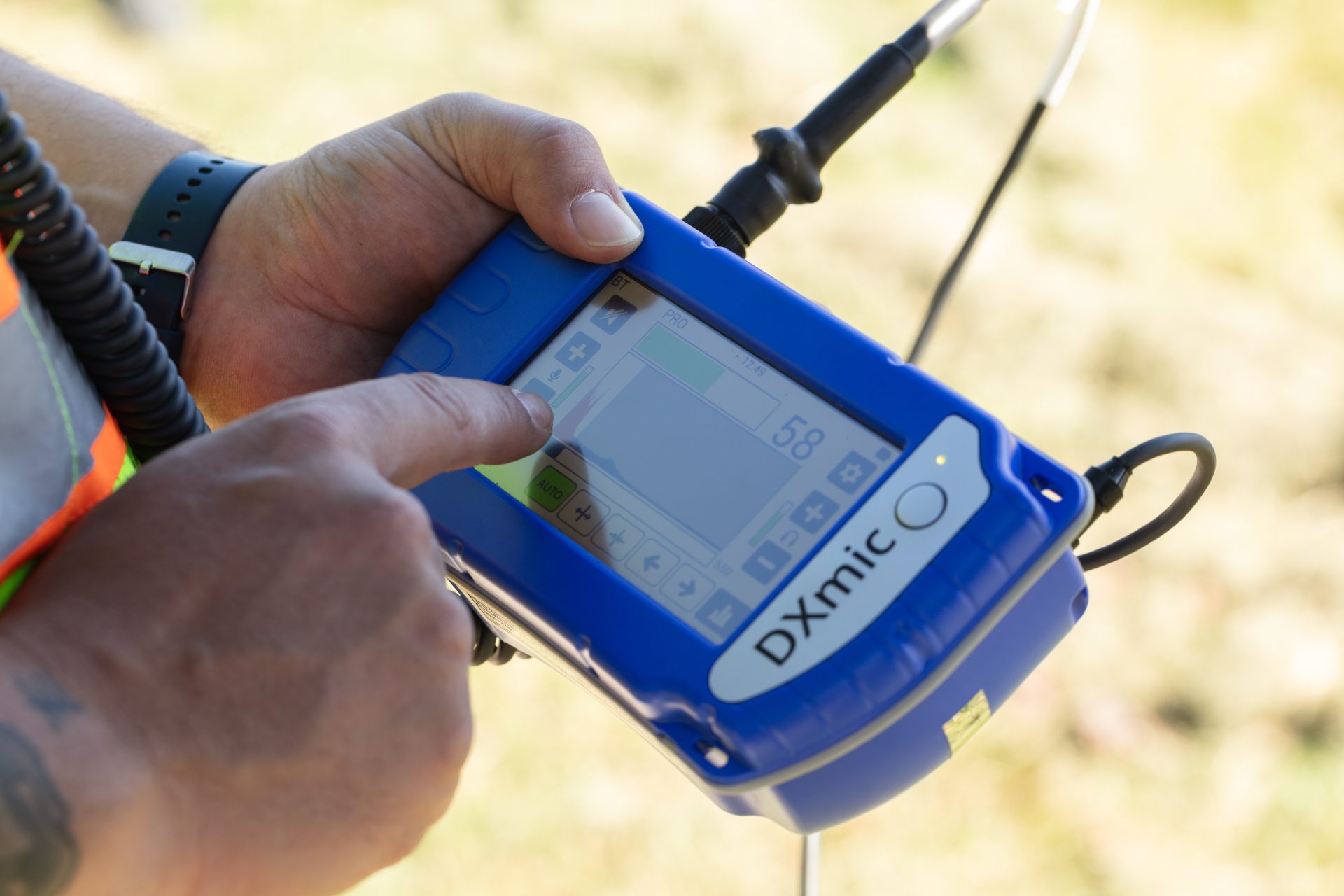

  • Touch screen: Clear multifunctional graphics and ease of use.
  • Wireless capability: This is for headphones or audio/configuration data transfer to the PC (Wireless or standard headphone options).
  • Clear upgrade path: Compatible with Xmic foot and hand probe sensor.
  • USB capability: For data transfer.
  • Rechargeable batteries: Li-ion cells with 15-25 hrs Battery life.
  • Support for audio recording: Playback functions are available for reference and training.
  • User friendly: Safety Noise Level cut off and noise cancellation filters.
  • Improved automatic filtering: Supported by frequency analysis display.
  • App version: For downloading results and remote transfer Frequency shifting: Moving low frequencies into audible spectrum for use on plastic pipelines.
  • Minimum level noise recording: For effective pinpointing.

Request Quote

Frequency range 30 to 3000Hz
Battery life Minimum 25 hours (without backlight)  and 15 hours (with backlight)
Battery charge Maximum 8 hours
Charger Universal 110-240V AC mains charger with 12V DC output (Optional in car adapter). All items can be charged in the case.
Weight 180g (with batteries)
Temperature Operating temperature range -15C to +50C
Dimensions 193H x 109W x 60D mm (7.5”H x 4.2”W x 2.3”D).
Keypad Touch screen LCD
Display 5.0 inch TFT LCD
Single level display 0-99
Minimum level profiling Ten readings
Headphones Studio-quality headphones are supplied as standard. Aviation quality headphones are available as an option.
‘Elephants foot” microphone  A high-sensitivity piezoelectric sensor is mounted in a windproof, nitrile rubber housing. Low noise. 1.5m cable. Weight: 2.9kg
Hand probe Attachment optional The hand probe is supplied with a tripod foot and two stainless steel probe rods For sounding on soft ground, plus magnetic contact for better coupling to fittings. Each probe rod is 400mm in length.
Displays Digital and ‘meter’ noise level  Frequency analysis. Filter selection. Memory feature.
